Spray Drying

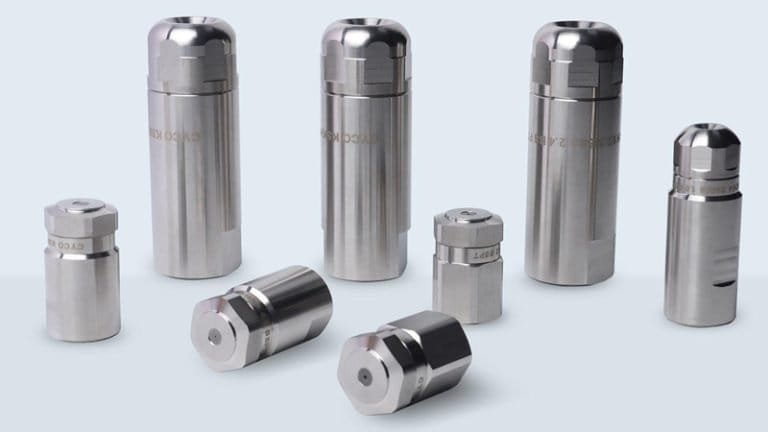

The spray drying nozzles utilize a stainless steel main body, with hardened stainless steel or alloy and jewel inserts. They are crafted with an internally embedded spiral guiding cavity. Under high pressure, the liquid passes through the guiding blades, forming a centrifugal hollow mist. The droplets are very small, allowing for high contact with the hot air and are widely used in spray drying equipment.

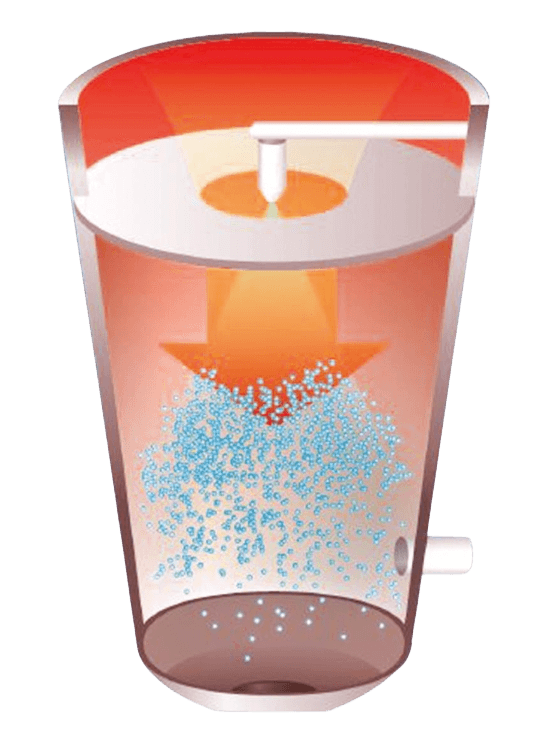

The method involves atomizing a dilute material in a drying chamber, whereupon contact with hot air, the moisture rapidly vaporizes, resulting in dried products. This technique enables direct drying of solutions and emulsions into powdered or granular products, eliminating the need for evaporation and grinding processes.
CYCO offers the most comprehensive range of spray drying nozzles in the industry, known for their easy maintenance and upkeep. They can be used for spray drying various products including milk, whey, coffee, yeast, spices, infant formula, soap and detergents, dyes and pigments, fine chemicals, as well as pharmaceuticals.
Our spray technology experts can assist you in selecting the drying spray nozzles that best suit your specific operational requirements.
- The most suitable for situations requiring uniform particle generation in spray drying, especially when larger particle sizes are desired.
- By widening the channels and enlarging the vortex chamber at the opening, the structure is less prone to blockages, thereby enhancing production efficiency.
- Flow rate and angle can be adjusted through a combination of orifices and cores.
Spray Drying Nozzle Types
Nozzles
Feature
Flow rate at 1000 psig
(approximately 70 bar) pressure
Hollow cone mode:
Spray angle range

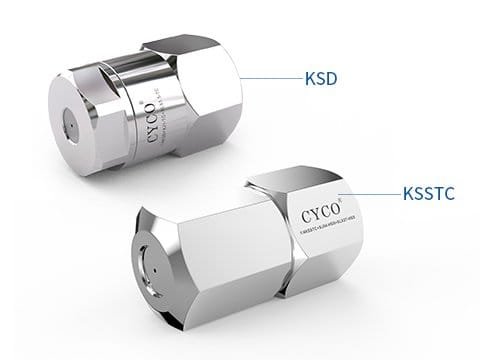

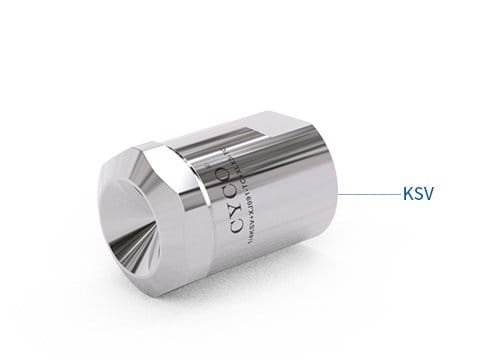

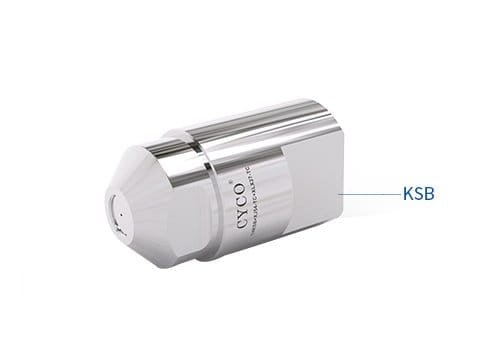

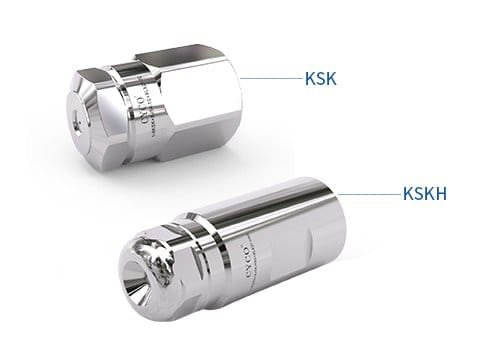

Swirl chamber or nozzle insert design
51 - 1350
(198 - 5110)
19° - 104°
Grooved nozzle core and nozzle insert design
39 - 151
(15 - 572)
45° - 90°
Grooved nozzle core and nozzle insert design
55 - 570
(208 - 2158)
34° - 109°
Vortex chamber and nozzle design
16 - 1000
(61 - 3785)
60° - 90°
Application
- Soap and detergents
- Dyes and pigments
- Coffee and tea
- Plastics and resins
- Biochemistry
- Fertilizers & Pesticides
- Pharmaceuticals
- Dairy products
Spray Drying Nozzles
Dongguan Changyuan Spray Technology Co., Ltd. (CYCO) was established in 1997 and is currently the leading manufacturer of industrial nozzles. High quality casting is highly trusted, CYCO has established good cooperative relations with more than 200 global customers, and passed the IATF16949 certification of Global Sai in 2018.
CYCO has specially designed three nozzles for desulfurization of marine exhaust gas, namely: spiral nozzle, short body full cone nozzle, and large flow full cone nozzle. The raw materials are plastic, stainless steel and silicon carbide. Professional achievements in the future, let the professional quality of CYCO to protect the blue sky, let’s work together.
